Simulation of Suspension system by Solidworks


Simulation of suspension system

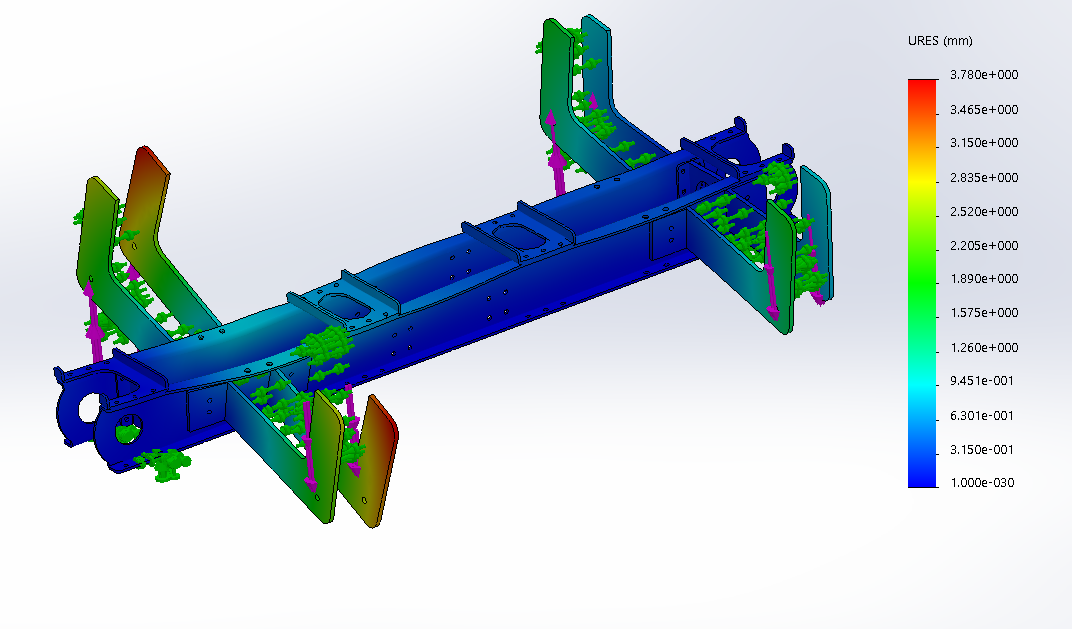

When it is forced by 5500N at the connecting point with shock-absorber,
the maximum deformation is 4mm.




When it is forced by 5920N, the maximum deformation is 5mm.
